Tube Skin Thermocouples
Many types of tube skin thermocouples can be specified by using the tables on the preeding pages. Units with expansion loops and special mounting arrangements are illustrated below. Tube Skin/Furnace tube thermocouple configurations vary widely with individual customers. If you have designs other than shown below, please send us your specifications. We are experienced in fabricating all designs currently used by most industries.
| Description | Head Assembly | Calibration | Order Code |

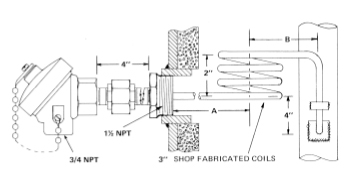

| As illustrated above with 1/4″ Cerampak, 310 S.S. sheath, Grounded welding pad 1 x 1 x 1/8″ S.S.
Furnished with one (1) hold down clamp. Expansion loops shop fabricated. |
Nipple Type (not shown) | Chromel/Alumel | TSA-K-(A)-(B) |
| Iron/Constantan | TSA-J-(A)-(B) | ||
| Nipple-Union-Nipple Type | Chromel/Alumel | TSB-K-(A)-(B) | |
| Iron/Constantan | TSB-J-(A)-(B) |
How to Order
Specify “Order Code” deired and replace (A) & (B) with the desired dimension in Inches.
Example: TSA-K-40-16
| Description | Head Assembly | Calibration | Order Code |

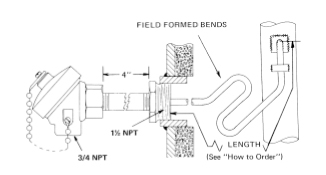

| As illustrated above with 1/4″ O.D. Cerampak, 310 S.S. sheath, Grounded welding pad 1 x 1 x 1/8″ S.S.
Furnished with one (1) hold down clamp. “S” bends for expansion are formed by field personnel. |
Nipple Type | Chromel/Alumel | TSC-K-(Length) |
| Iron/Constantan | TSC-J-(Length) | ||
| Nipple-Union-Nipple Type (not shown) | Chromel/Alumel | TSD-K-(Length) | |
| Iron/Constantan | TSD-J-(Length) |
How to Order
Specify “Order Code” of assembly desired and replace (Length) with length desired in inches.
Important: Length is measured from the bottom of the 1 1/2″ NPT bushing to end of pad. Be sure to include sufficient length to field form the “S” bends.
Example: TSD-K-120
