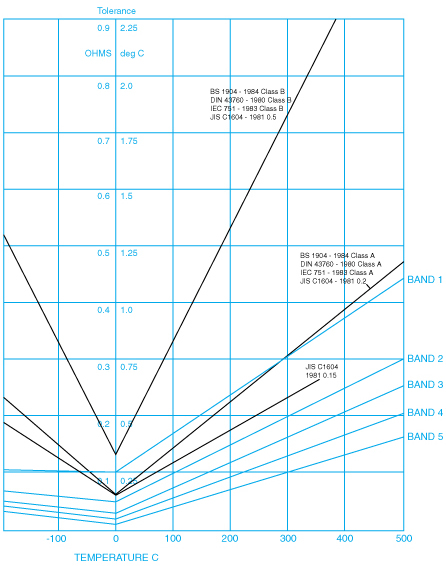

Table 3

Detector Tolerance Chart 1 | Thermo Sensors

Table 3 illustrates the tolerances applicable for specifications DIN 43760 – 1980, BS 1904 : 1984, IEC 751 : 1983 and JIS C1604 – 1981, together with the Thermo Sensors Bands 1 to 5.

At the higher temperatures it should be appreciated that the tolerance deviation is most affected by variation of Alpha values, rather than R0 accuracy.
