Metal Protecting Tube with Flange / Cast Iron Protecting Tube

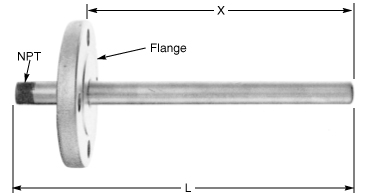

Metal Protecting Tube with Flange
| NPT | O.D. x I.D. (Nom.)** | Ordering Code | ||||
| Series | Material | “L” | Flange | “X” | ||
| 1/8″ | .405″ x .269″ | F18 | Select Material
Code from |
Specify
in Inches |
Specify
Size, Rating, Facing, Material |
Specify
in Inches |
| 1/4″ | .540″ x.364″ | F14 | ||||
| 1/2″ | .840″ x.622″ | F12 | ||||
| 3/4″ | 1.050″ x .824″ | F34 | ||||
| 1″ | 1.315″ x 1.049″ | F10 | ||||
How to Order
- Select series number.
- Select material code from Material Table and add to series designation.
- Specify desired “L” dimension in inches.
- Specify desired flange by size, rating, facing and material.
- Specify desired “X” dimension in inches.
| Example: | ||||||
| F1036 | – | 48 | – | 1 1/2-150#RF-316s.s. | – | 42 |
| Series/Mat’l | “L” | Flange | “X” | |||

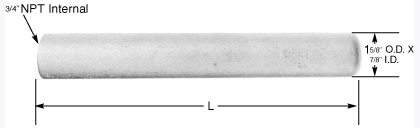

Cast Iron Protecting Tube
Cast iron tubes are available both coated and uncoated. Coated tubes have a thin ceramic coating which resists wetting of the tube by molten metals with the advantage of longer life in molten aluminum, zinc and lead.
It is recommended that uncoated tubes be dipped frequently in ladle wash or similar material to prolong life.
How to Order
| Ordering Information | |
| Coated | 8634-(L) |
| Uncoated | 8734-(L) |
| Specify “L” in inches.
Standard Lengths: 12″, 18″, 24″, 30″, 36″, 42″, 48″ |
|
