Metal Protecting Tubes/Tubes With Bushings

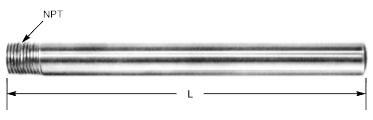

Metal Protecting Tube
| NPT | O.D. x I.D. (Nom.)** | Ordering Code | ||
| Series | Material | “L” | ||
| 1/8″ | .405″ x .269″ | 18 | Select
Material Code from |
Specify
in Inches |
| 1/4″ | .540″ x.364″ | 14 | ||
| 1/2″ | .840″ x.622″ | 12 | ||
| 3/4″ | 1.050″ x .824″ | 34 | ||
| 1″ | 1.315″ x 1.049″ | 10 | ||
How to Order
- Select series number.
- Select material code from Material Table and add to series.
- Specify desired “L” dimension in inches.
| Example: | ||
| 1260 | – | 18 |
| Series/Mat’l | “L” | |

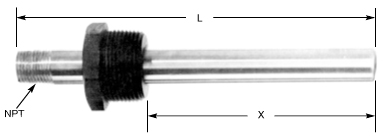

Metal Protecting Tube with Bushings
| NPT | O.D. x I.D. (Nom.)** | Ordering Code | ||||
| Series | Material | “L” | “P” | “X” | ||
| 1/8″ | .405″ x .269″ | B18 | Select
Material Code from |
Specify
in Inches |
Specify
D for 1/2″ NPT F for 3/4″ NPT H for 1″ NPT K for 1 1/4″ NPT M for 1 1/2″ NPT |
Specify
in Inches |
| 1/4″ | .540″ x.364″ | B14 | ||||
| 1/2″ | .840″ x.622″ | B12 | ||||
| 3/4″ | 1.050″ x .824″ | B34 | ||||
| 1″ | 1.315″ x 1.049″ | B10 | ||||
How to Order
- Select series number.
- Select material code from Material Table and add to series designation.
- Specify desired “L” dimension in inches.
- Select desired “P” NPT size and insert the proper letter code.
- Specify desired “X” dimension in inches.
| Example: | ||||||
| B1834 | – | 24 | – | K | – | 18 |
| Series/Mat’l | “L” | 1 1/4″ NPT | “X” | |||
* Welded bushings are carbon steel unless otherwise specified.
To specify a 304 s.s. bushing – insert “SS” between the bushing designation and the “X” dimension.
Example: -HSS8 for a 1″ NPT 304 ss bushing with X=8″
** These dimensions are for standard tubes made with schedule 40 pipes. To specify schedule 80 or 160 – insert “(80)” or “(160)” between the “Type” and “Material” selections in the ordering code table.
Example: 12(80)36-12, B112(80)34-18-H12 or F34(80)34-18-1x300RF-304-12 for schedule 80.
