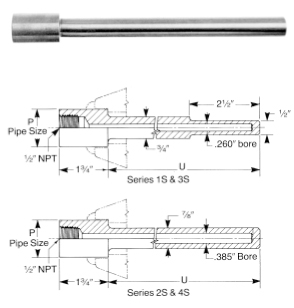

Socket Weld Thermowells
| Pipe Size “P” | Bore | Q | Ordering Code | ||
| Type | Material | “U” | |||
| 3/4″ Nominal
(1.050″ Dia.) |
.260 | 3/4″ | 1S | Select Material Code from Here | Specify in Inches
——- Standard Lengths: 2 1/2″, 4 1/2″, 7 1/2″, 10 1/2″, 13 1/2″, 16 1/2″, 22 1/2″ |
| .385 | 7/8″ | 2S | |||
| 1″ Nominal
(1.315″ Dia.) |
.260 | 3/4″ | 3S | ||
| .385 | 7/8″ | 4S | |||
How to Order
Example: 1S96-10 1/2
“P” Dim. = 3/4″ Nom. Pipe
Bore = .260″
Material = Monel
“U” = 10 1/2″
