Product and Ordering Information

Metal Protecting Tube

Metal Protecting Tubes/Tubes With Bushings 1 | Thermo Sensors

NPTO.D. x I.D. (Nom.)**Ordering Code
SeriesMaterial“L”
1/8″.405″ x .269″18

Select

Material

Code from

Material Table

Specify

in Inches

1/4″.540″ x.364″14
1/2″.840″ x.622″12
3/4″1.050″ x .824″34
1″1.315″ x 1.049″10

How to Order

  1. Select series number.
  2. Select material code from Material Table and add to series.
  3. Specify desired “L” dimension in inches.
Example:
1260    18
Series/Mat’l“L”

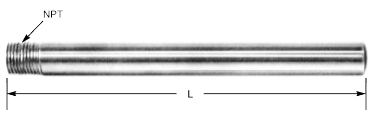

Metal Protecting Tube with Bushings

Metal Protecting Tubes/Tubes With Bushings 2 | Thermo Sensors

NPTO.D. x I.D. (Nom.)**Ordering Code
SeriesMaterial“L”“P”“X”
1/8″.405″ x .269″B18

Select

Material

Code from

Material Table

Specify

in Inches

Specify

D for 1/2″ NPT

F for 3/4″ NPT

H for 1″ NPT

K for 1 1/4″ NPT

M for 1 1/2″ NPT

Specify

in Inches

1/4″.540″ x.364″B14
1/2″.840″ x.622″B12
3/4″1.050″ x .824″B34
1″1.315″ x 1.049″B10

How to Order

  1. Select series number.
  2. Select material code from Material Table and add to series designation.
  3. Specify desired “L” dimension in inches.
  4. Select desired “P” NPT size and insert the proper letter code.
  5. Specify desired “X” dimension in inches.
Example:
B1834    24    K    18
Series/Mat’l“L”1 1/4″ NPT“X”

* Welded bushings are carbon steel unless otherwise specified.
To specify a 304 s.s. bushing – insert “SS” between the bushing designation and the “X” dimension.
Example: -HSS8 for a 1″ NPT 304 ss bushing with X=8″

** These dimensions are for standard tubes made with schedule 40 pipes. To specify schedule 80 or 160 – insert “(80)” or “(160)” between the “Type” and “Material” selections in the ordering code table.
Example: 12(80)36-12, B112(80)34-18-H12 or F34(80)34-18-1x300RF-304-12 for schedule 80.
