Product and Ordering Information

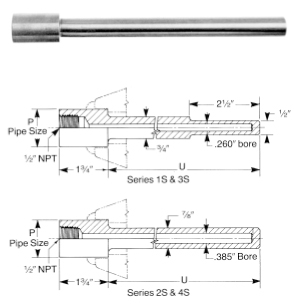

Socket Weld Thermowells 1 | Thermo Sensors

Pipe Size “P” Bore Q Ordering Code
Type Material “U”

3/4″ Nominal

(1.050″ Dia.)

.260 3/4″ 1S Select Material Code from Here

Specify in Inches

——-

Standard Lengths:

2 1/2″, 4 1/2″,

7 1/2″, 10 1/2″,

13 1/2″, 16 1/2″, 22 1/2″

.385 7/8″ 2S

1″ Nominal

(1.315″ Dia.)

.260 3/4″ 3S
.385 7/8″ 4S

How to Order

Example: 1S96-10 1/2
“P” Dim. = 3/4″ Nom. Pipe
Bore = .260″
Material = Monel
“U” = 10 1/2″
